EA70 AX Disc Wheel

Product image 1
1 / 4

EA70 AX Disc Wheel

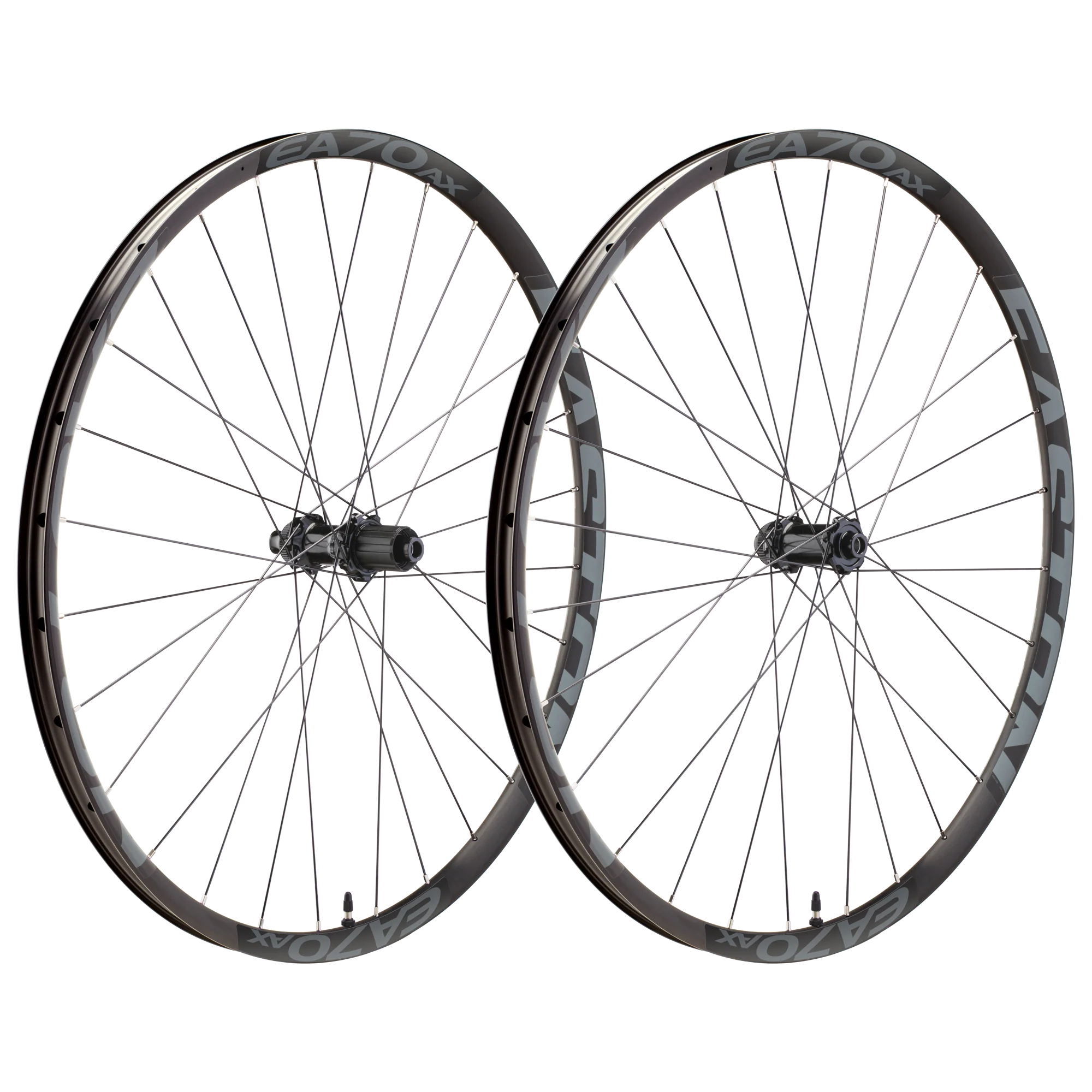

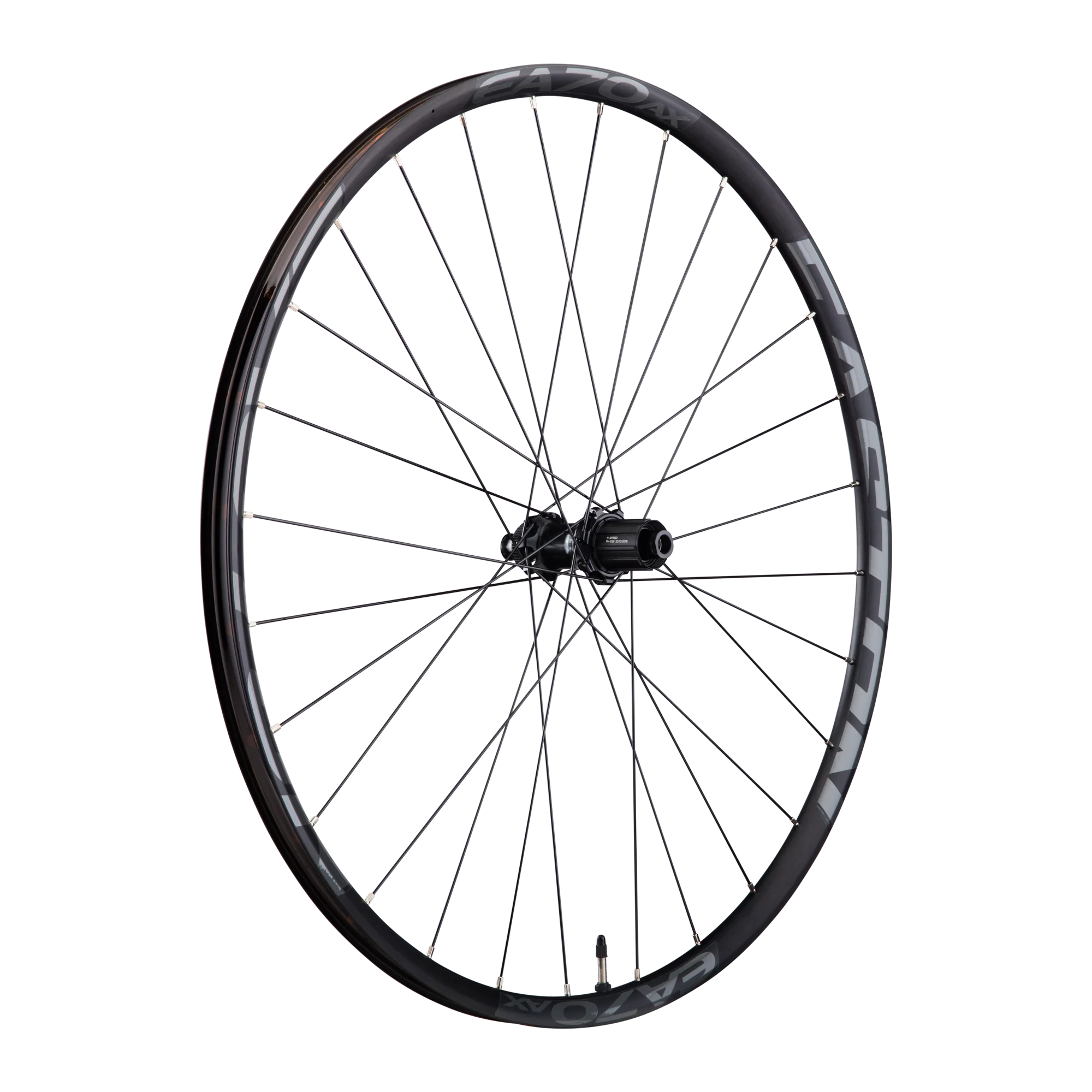

Find the road less travelled on the new EA70 AX wheelset. Joining forces with the EA70 and EC70 AX Bar in our AX adventure road line, the new EA70 AX wheelset has the durability to withstand trail riding but is translated to drop bar applications with center lock hubs and 11-speed road and 12x100 front hub compatibility. From bikepacking adventures loaded with gear, to washboarded gravel descents with only your wheels and tires providing the compliance, we have you covered. The welded tubeless ready rim boasts a generous 24mm internal rim width that increased tire volume and gives an optimal tire profile for 35 to 50C tires. Available in 650b and 700c it’s the perfect wheelset to round out any adventure drop bar build.

[Speci Tab]

WHEEL SIZES: 650B / 700C
WHEELSET: 1670g / 1760g
FINISH: BRUSHED BLACK ANODIZE / VINYL DECALS
TYPE: DISC ALUMINUM CLINCHER TUBELESS READY
RIM MATERIAL: EA70 ALLOY / WELDED
RIM DEPTH: 20mm
INTERNAL RIM WIDTH: 24mm
EXTERNAL RIM WIDTH: 27.5mm
SPOKES: STRAIGHT PULL DOUBLE BUTTED BLACK
FRONT SPOKE PATTERN: 3x
REAR SPOKE PATTERN: 3x
NIPPLE TYPE: SILVER BRASS
BRAKE INTERFACE: CENTERLOC DISC
FRONT HUB TYPE: X5 CL, 9X100QR/15x100 OR 12X100
REAR HUB TYPE: X5 CL, 10X135QR/12x142

[/Speci Tab]

[feature Tab]

  • 650b and 700c Options
  • EA70 Alloy Welded Rim
  • X5 Centerlock Hubs
  • Thru Axle + QR Options
  • Tubeless Ready
  • MTB Durability for your Gravel Build
  • Oversize shipping fees may apply

[/feature Tab]

[Manuals Tab]

Rim Pressure Guide

X5CL Hub Diagram (Rear)

X5CL Hub Diagram (Front)

[/Manuals Tab]
